**Fast
Fourier Transform (FFT)**

¡@

In this section we present several methods for computing the DFT efficiently. In view of the importance of the DFT in various digital signal processing applications, such as linear filtering, correlation analysis, and spectrum analysis, its efficient computation is a topic that has received considerable attention by many mathematicians, engineers, and applied scientists.

From this point, we
change the notation that *X(k)*, instead of *y(k)*
in previous sections, represents the Fourier coefficients of*
x(n)*.

Basically, the
computational problem for the DFT is to compute the sequence {*X*(*k*)}
of *N* complex-valued numbers given another sequence of
data {*x*(*n*)} of length *N*, according to
the formula

In general, the data
sequence *x*(*n*) is also assumed to be complex
valued. Similarly, The IDFT becomes

Since DFT and IDFT involve basically the same type of computations, our discussion of efficient computational algorithms for the DFT applies as well to the efficient computation of the IDFT.

We observe that for each
value of *k*, direct computation of *X*(*k*)
involves *N* complex multiplications (4*N* real
multiplications) and *N*-1 complex additions (4*N*-2
real additions). Consequently, to compute all *N* values
of the DFT requires *N*^{ 2} complex
multiplications and *N*^{ 2}-*N* complex
additions.

Direct computation of
the DFT is basically inefficient primarily because it does not
exploit the symmetry and periodicity properties of the phase
factor W_{N}. In particular, these two properties are :

The computationally efficient algorithms described in this sectio, known collectively as fast Fourier transform (FFT) algorithms, exploit these two basic properties of the phase factor.

¡@

**Radix-2 FFT
Algorithms**

Let us consider the computation
of the *N* = 2^{v} point DFT by the divide-and
conquer approach. We split the *N*-point data sequence
into two *N*/2-point data sequences *f*_{1}(*n*)
and *f*_{2}(*n*), corresponding to the
even-numbered and odd-numbered samples of *x*(*n*),
respectively, that is,

Thus *f*_{1}(*n*)
and *f*_{2}(*n*) are obtained by decimating
*x*(*n*) by a factor of 2, and hence the resulting
FFT algorithm is called a *decimation-in-time algorithm*.

Now the N-point DFT can be expressed in terms of the DFT's of the decimated sequences as follows:

But *W*_{N}^{2}*
= W*_{N/2}. With this substitution, the
equation can be expressed as

where *F*_{1}(*k*)
and *F*_{2}(*k*) are the *N*/2-point
DFTs of the sequences *f*_{1}(*m*) and *f*_{2}(*m*),
respectively.

Since *F*_{1}(*k*)
and *F*_{2}(*k*) are periodic, with period*
N*/2, we have *F*_{1}(*k+N/2*)* = F*_{1}(*k*)
and *F*_{2}(*k+N/2*) = *F*_{2}(*k*).
In addition, the factor *W*_{N}^{k+N/2}*
= -W*_{N}^{k}*. *Hence
the equation may be expressed as

We observe that the direct
computation of *F*_{1}(*k*) requires (*N*/2)^{2}
complex multiplications. The same applies to the computation of *F*_{2}(*k*).
Furthermore, there are *N*/2 additional complex
multiplications required to compute *W*_{N}^{k}*F*_{2}(*k*).
Hence the computation of *X*(*k*) requires 2(*N*/2)^{2}
+ *N*/2 = *N *^{2}/2 + *N*/2 complex
multiplications. This first step results in a reduction of the
number of multiplications from *N*^{ 2 }to *N *^{2}/2
+ *N*/2, which is about a factor of 2 for *N*
large.

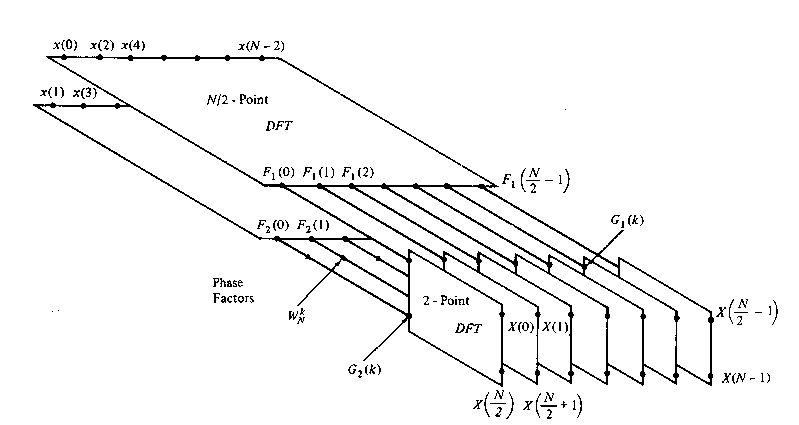

**Figure
TC.3.1 **First step in the decimation-in-time algorithm.

¡@

By computing *N*/4-point
DFTs, we would obtain the *N*/2-point DFTs *F*_{1}(*k*)
and *F*_{2}(*k*) from the relations

The decimation of the data
sequence can be repeated again and again until the resulting
sequences are reduced to one-point sequences. For *N* = 2^{v},
this decimation can be performed v = log_{2}*N*
times. Thus the total number of complex multiplications is
reduced to (*N*/2)log_{2}*N*. The number of
complex additions is *N*log_{2}*N*.

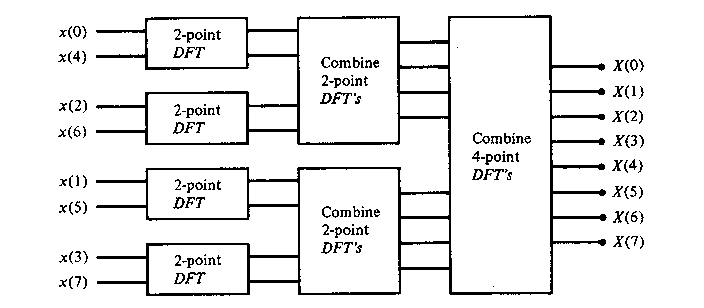

For illustrative purposes, Figure
TC.3.2 depicts the computation of *N* = 8 point DFT. We
observe that the computation is performed in tree stages,
beginning with the computations of four two-point DFTs, then two
four-point DFTs, and finally, one eight-point DFT. The
combination for the smaller DFTs to form the larger DFT is
illustrated in Figure TC.3.3 for *N* = 8.

**Figure
TC.3.2 **Three stages in the computation of an *N*
= 8-point DFT.

¡@

**Figure
TC.3.3 **Eight-point decimation-in-time FFT algorithm.

¡@

**Figure
TC.3.4 **Basic butterfly computation in the
decimation-in-time FFT algorithm.

¡@

An important
observation is concerned with the order of the input data
sequence after it is decimated (v-1) times. For example, if we
consider the case where N = 8, we know that the first decimation
yeilds the sequence *x(0), x(2), x(4), x(6), x(1), x(3), x(5),
x(7), *and the second decimation results in the sequence *x(0),
x(4), x(2), x(6), x(1), x(5), x(3), x(7).* This *shuffling*
of the input data sequence has a well-defined order as can be
ascertained from observing Figure TC.3.5, which illustrates the
decimation of the eight-point sequence.

¡@

**Figure
TC.3.5 **Shuffling of the data and bit reversal.

¡@

Another important radix-2 FFT
algorithm, called the decimation-in-frequency algorithm, is
obtained by using the divide-and-conquer approach. To derive the
algorithm, we begin by splitting the DFT formula into two
summations, one of which involves the sum over the first *N*/2
data points and the second sum involves the last N/2 data points.
Thus we obtain

Now, let us split (decimate) X(k) into the even- and odd-numbered samples. Thus we obtain

where we have used the fact that *W*_{N}^{2}*
= W*_{N/2}

The computational
procedure above can be repeated through decimation of the *N*/2-point
DFTs *X*(2*k*) and *X*(2*k*+1). The
entire process involves v = log_{2}*N* stages of
decimation, where each stage involves *N*/2 butterflies of
the type shown in Figure TC.3.7. Consequently, the computation of
the N-point DFT via the decimation-in-frequency FFT requires (*N*/2)log_{2}N
complex multiplications and *N*log_{2}*N*
complex additions, just as in the decimation-in-time algorithm.
For illustrative purposes, the eight-point
decimation-in-frequency algorithm is given in Figure TC.3.8.

¡@

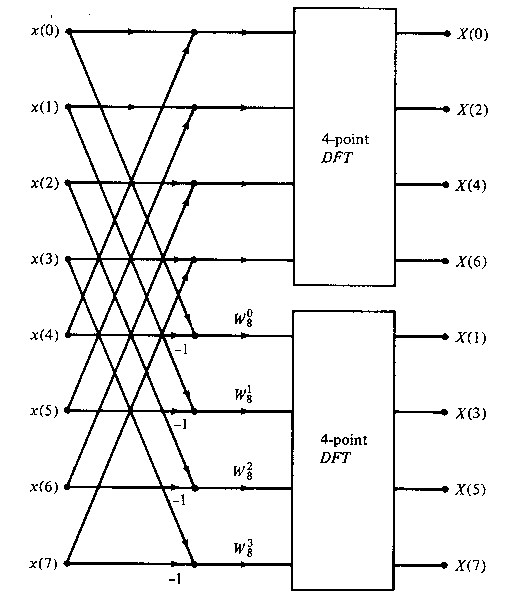

**Figure
TC.3.6** First stage of the decimation-in-frequency FFT
algorithm.

¡@

¡@

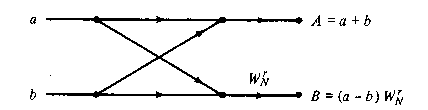

**Figure
TC.3.7 **Basic butterfly computation in the
decimation-in-frequency.

¡@

¡@

**Figure
TC.3.8 ***N* = 8-piont decimation-in-frequency FFT
algorithm.

¡@

We observe from Figure TC.3.8
that the input data *x*(*n*) occurs in natural
order, but the output DFT occurs in bit-reversed order. We also
note that the computations are performed in place. However, it is
possible to reconfigure the decimation-in-frequency algorithm so
that the input sequence occurs in bit-reversed order while the
output DFT occurs in normal order. Furthermore, if we abandon the
requirement that the computations be done in place, it is also
possible to have both the input data and the output DFT in normal
order.

¡@

**Radix-4 FFT
Algorithm**

When the number of data
points *N* in the DFT is a power of 4 (i.e., *N* =
4^{v}), we can, of course, always use a radix-2 algorithm
for the computation. However, for this case, it is more efficient
computationally to employ a radix-r FFT algorithm.

Let us begin by
describing a radix-4 decimation-in-time FFT algorithm briefly. We
split or decimate the *N*-point input sequence into four
subsequences, *x*(4*n*), *x*(4*n*+1),
*x*(4*n*+2), *x*(4*n*+3), *n*
= 0, 1, ... , *N*/4-1.

Thus the four *N*/4-point
DFTs *F*(*l, q*)obtained from the above equation
are combined to yield the N-point DFT. The expression for
combining the *N*/4-point DFTs defines a radix-4
decimation-in-time butterfly, which can be expressed in matrix
form as

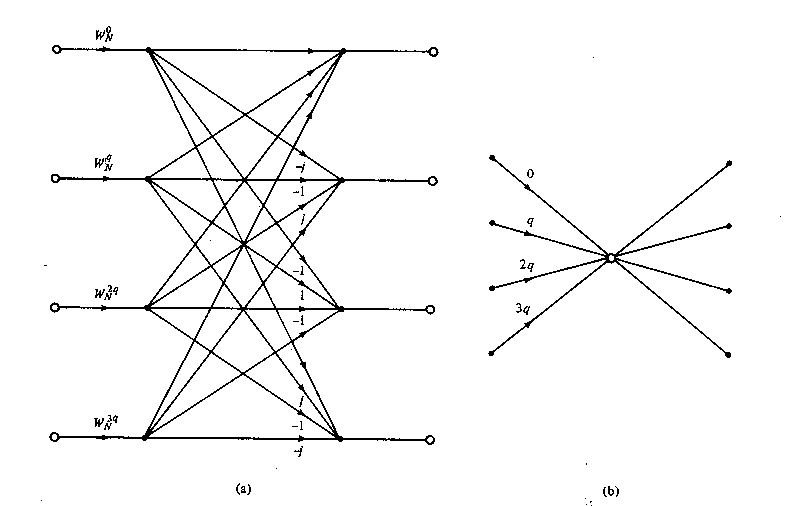

The radix-4 butterfly is
depicted in Figure TC.3.9a and in a more compact form in Figure
TC.3.9b. Note that each butterfly involves three complex
multiplications, since *W*_{N}^{0}
= 1, and 12 complex additions.

¡@

**Figure
TC.3.9 **Basic butterfly computation in a radix-4 FFT
algorithm.

¡@

By performing the additions in two steps, it is possible to reduce the number of additions per butterfly from 12 to 8. This can be accomplished ty expressing the matrix of the linear transformation mentioned previously as a product of two matrices as follows:

¡@

**Figure
TC.3.10 **Sixteen-point radix-4 decimation-in-time
algorithm with input in normal order and output in digit-reversed
order

¡@

A 16-point, radix-4 decimation-in-frequency FFT algorithm is shown in Figure TC.3.11. Its input is in normal order and its output is in digit-reversed order. It has exactly the same computational complexity as the decimation-in-time radex-4 FFT algorithm.

**Figure
TC.3.11 **Sixteen-point, radix-4 decimation-in-frequency
algorithm with input in normal order and output in digit-reversed
order.

¡@

For illustrative
purposes, let us re-derive the radix-4 decimation-in-frequency
algorithm by breaking the *N*-point DFT formula into four
smaller DFTs. We have

From the definition of the twiddle factors, we have

The relation is not an *N*/4-point
DFT because the twiddle factor depends on N and not on *N*/4.
To convert it into an *N*/4-point DFT we subdivede the DFT
sequence into four *N*/4-point subsequences, *X*(4*k*),
*X*(4*k*+1), *X*(4*k*+2), and *X*(4*k*+3),
*k* = 0, 1, ..., *N*/4. Thus we obtain the radix-4
decimation-in frequency DFT as

where we have used the property *W*_{N}^{4kn}*
= W*^{kn}_{N/4}*. *Note
that the input to each *N*/4-point DFT is a linear
combination of four signal samples scaled by a twiddle factor.
This procedure is repeated v times, where v = log_{4}*N*.

¡@

¡@

**Split-Radix FFT
Algorithms**

An inspection of the radix-2 decimation-in-frequency flowgraph shown in Figure TC.3.8 indicates that the even-numbered pints of the DFT can be computed independently of the odd-numbered points. This suggests teh possibility of using different computational methods for independent parts of the algorithm, with the objective of reducing the number of computations. The split-radix FFT (SRFFT) algorithms exploit this idea by using both a radix-2 and a radix-4 decomposition in the same FFT algorithm.

First, we recall that in
the radix-2 decimation-in-frequency FFT algorithm, the
even-numbered samples of the *N*-point DFT are given as

A radix-2 suffices for this computation.

The odd-numbered samples
{*X*(2*k*+1)} of the DFT require the
pre-multiplication of the input sequence with the twiddle factors
W_{N}^{n}. For these samples a radix-4
decomposition produces some computational efficiency because the
four-point DFT has the largest multiplication-free butterfly.
Indeed, it can be shown that using a radix greater than 4 does
not result in a significant reduction in computational
complexity.

If we use a radix-4
decimation-in-frequency FFT algorithm for the odd-numbered
samples of the *N*-point DFT, we obtain the following *N*/4-point
DFTs:

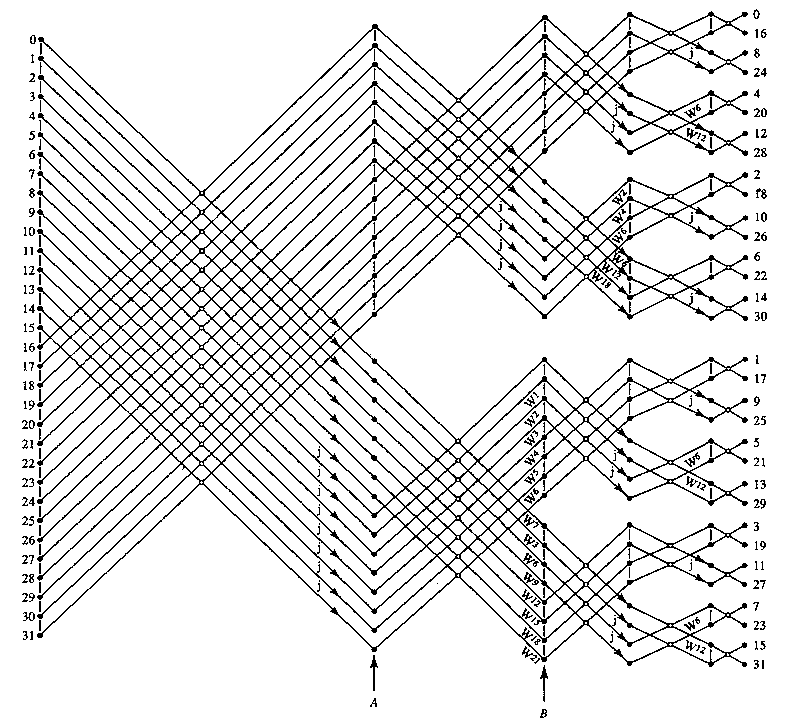

Figure TC.3.12 shows the flow graph for an in-place 32-point decimation-in-frequency SFFT algorithm.

**Figure
TC.3.12 **Length 23 split-radix FFT algorithms from paper
by Duhamel (1986); reprinted with permission from the IEEE

¡@

¡@

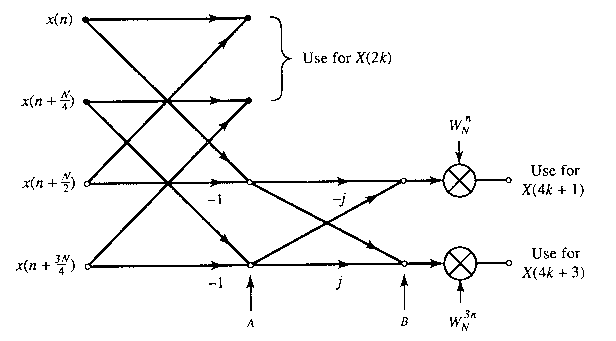

**Figure
TC.3.13 **Butterfly for SRFFT algorithm.

¡@

¡@

¡@ | Real Multiplications |
Real Additions |
||||||

N |
Radix-2 |
Radix-4 |
Radix-8 |
Split
Radix |
Radix-2 |
Radix-4 |
Radix-8 |
Split
Radix |

16 | 24 | 20 | ¡@ | 20 | 152 | 148 | ¡@ | 148 |

32 | 88 | ¡@ | ¡@ | 68 | 408 | ¡@ | ¡@ | 388 |

64 | 264 | 208 | 204 | 196 | 1032 | 976 | 972 | 964 |

128 | 72 | ¡@ | ¡@ | 516 | 2054 | ¡@ | ¡@ | 2308 |

256 | 1800 | 1392 | ¡@ | 1284 | 5896 | 5488 | ¡@ | 5380 |

512 | 4360 | ¡@ | 3204 | 3076 | 13566 | ¡@ | 12420 | 12292 |

1024 | 10248 | 7856 | ¡@ | 7172 | 30728 | 28336 | ¡@ | 27652 |

**Table
TC.3.1 **Number of Nontrivial Real Multiplcations and
Additions to Compute an *N*-point Complex DFT
